1. Tšebeliso ea ho Phahamisa Frame ea tšepe (Hoisting Calculation)

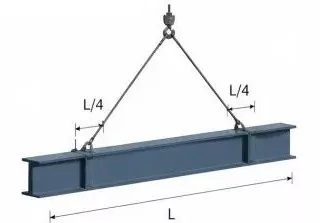

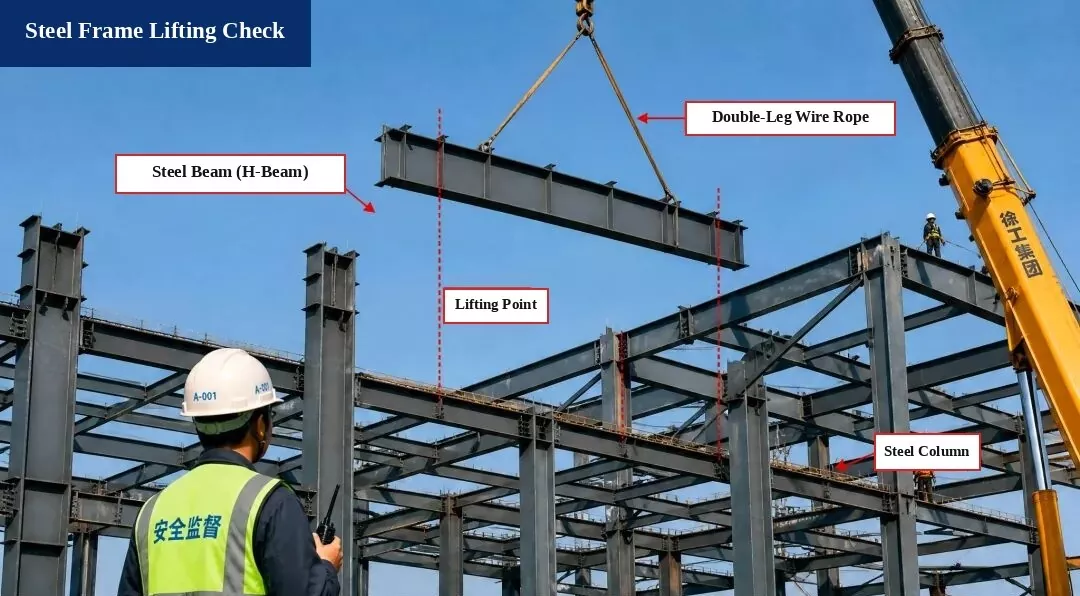

I. Setšoantšo sa Phahamiso

Setho:Beam ea tšepe H500×200×10×16, Length L = 12.0 m

Lintlha tsa Phahamiso:Beha L / 4 ho tloha pheletsong e 'ngoe le e' ngoe ea leballo

Sling Angle:α ≈ 60°

II. Phallo Calculation

1. Boima ba Boima ba Beam:
G = ρ × V = 78.5 kN/m³ × 0.212 m³/m × 12.0 m = 199.9 kN

2. Dynamic Load Factor:Nka 1.1

3. Boima ba Marang-rang:E hlokomolohuoe (ha e na thuso)

4. Kakaretso ea Mojaro o Phahamisang:
P = G × 1.1 = 219,9 kN

5. Tension ea Sling (Moroalo o leka-lekaneng):
T = P / (2 × cos α) = 219.9 / (2 × cos 60°) = 219.9 kN

III. Sling Safety Check

1. Mofuta oa Sling:φ20 thapo ea tšepe ea tšepe, mojaro o robehileng Fb = 360 kN

2. Ntlha ea Tšireletseho (n):
n = Fb / T = 360 / 219.9 = 1.64 > 1.25

E finyella litlhoko tse tloaelehileng!

Sheba Qetello:
Ts'ebetso ea ho phahamisa e bolokehile ebile e fihlela litlhoko tsa khoutu.

Reference Standards

• Khoutu ea Kaho ea Mehaho ea Litšepe (GB 50755-2012)

• Khoutu ea Setekheniki bakeng sa Polokeho ea Phahamiso le Ho Phahamisa ka Mohaho (JGJ 276-2012)

Lintlha tsa Polokeho:

1. Lekola libalaka la tšepe, lithapo tsa terata le lisebelisoa tsa ho phahamisa pele u li phahamisa ho etsa bonnete ba hore li bolokehile ebile lia tšepahala.

2. Abela motho ea inehetseng ho tsamaisa mokhoa oa ho phahamisa. Ha ho motho ea ka emang tlas'a leballo le phahamisitsoeng.

3. Emisa mosebetsi oa ho phahamisa hang-hang ha lebelo la moea le fihla ho Level 6 kapa ho feta.

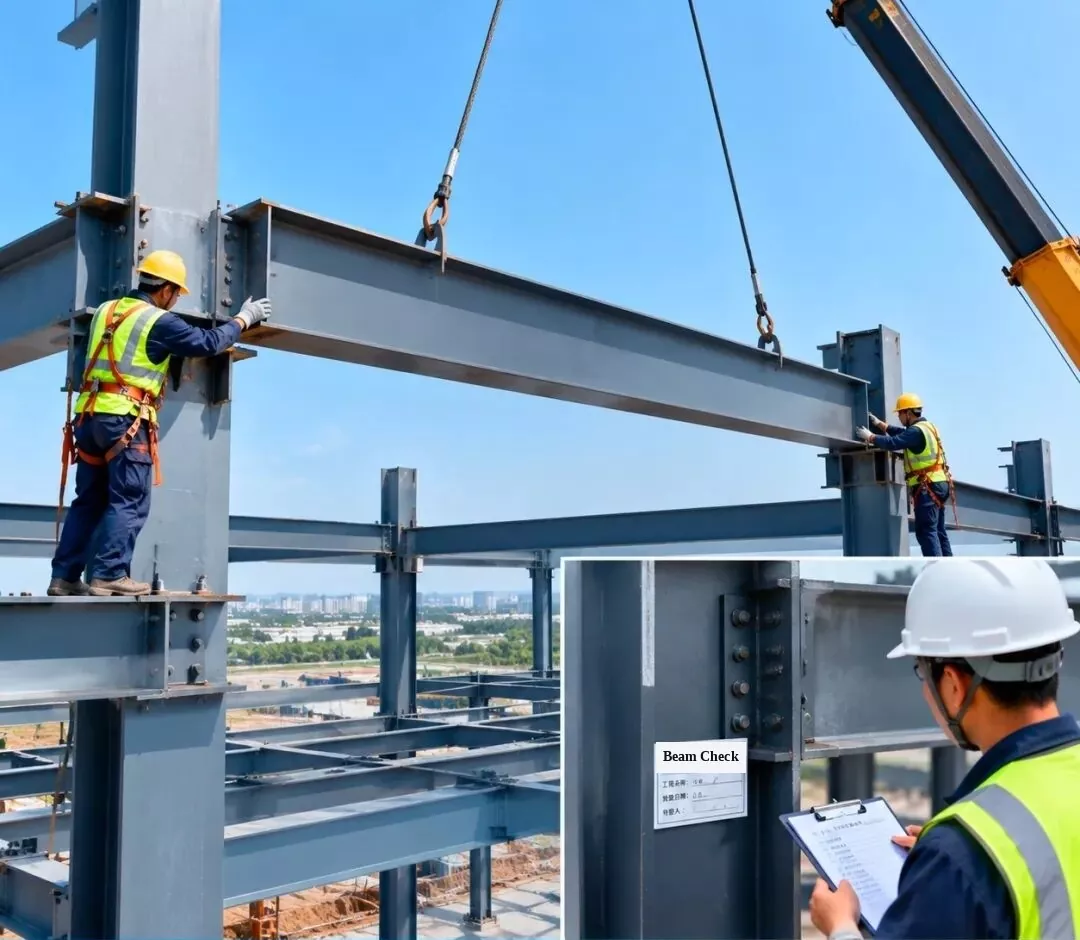

2. Ho kenya le ho hlahloba Frame ea tšepe - Ho kenya Beam ea tšepe

Phahamisa tšepe ea tšepe sebakeng sa eona se reriloeng, ebe u hlahloba le ho fana ka tumello ea likhokahano ho etsa bonnete ba hore boleng ba ho kenya bo finyella litlhoko tsa moralo.

[Inset Tag ho Kholomo: Tekolo ea Ts'ebetso ea Beam ea tšepe | Lebitso la Morero: Workshop #1 | Letsatsi la Tlhahlobo | Mohlahlobi]

3. Ho kenya le ho hlahloba Frame ea tšepe - Ho kenngoa ha Steel Roof Truss

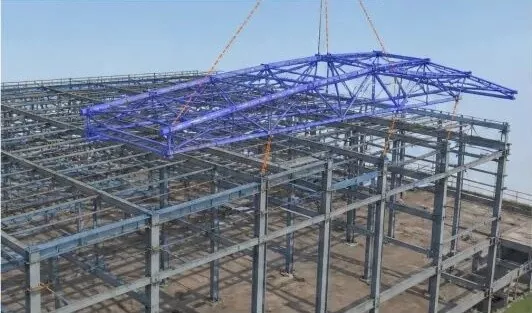

1. Ketsiso ea 3D BIM:Etsisa ho kenya terata ea marulelo a tšepe ho ntlafatsa moralo oa ho phahamisa le taelo ea ho kenya.

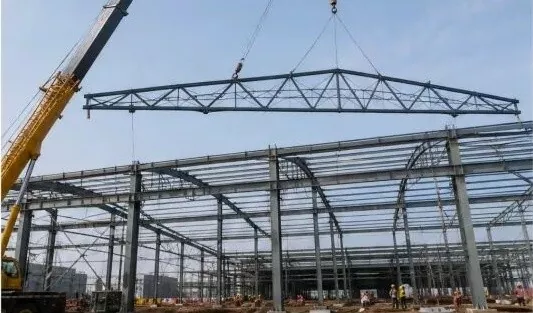

2. Ho Phahamisa Marulelo:Sebelisa crane ea teraka ho phahamisa truss le ho e beha butle sebakeng ha u ntse u e boloka e tsitsitse.

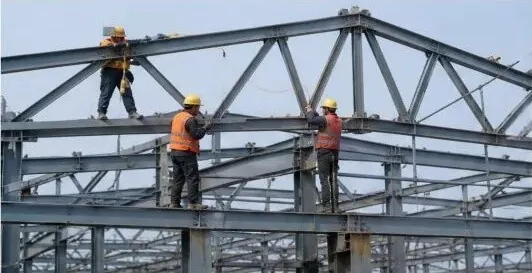

3. Maemo le Tokiso ea Nakoana:Ka mor'a hore marulelo a marulelo a be teng, e sireletse ka nakoana 'me u fetole boemo ba eona le bophahamo (boemo).

4. Khokahano ea Bolt e Matla a Phahameng:Tiisa liboutu tse matla haholo ho latela melao ea moralo ho netefatsa khokahano e matla.

5. Tlhahlobo ea Kemiso:Lekola bolelele ba truss, bolelele, ho kobeha (ho kheloha), le ho tsepama ho etsa bonnete ba hore li kopana le khoutu.

6. Tlaleho ea Tlhahlobo:Kamora ho fetisa tlhahlobo, tlatsa foromo ea rekoto ebe u fetela mohatong o latelang oa kaho.

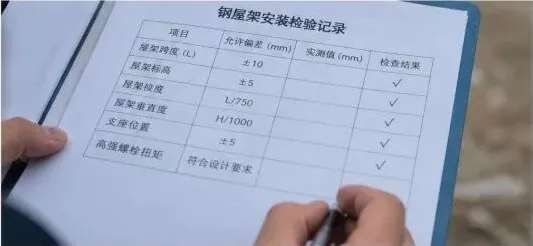

Rekoto ea Tlhahlobo ea Ts'ebetso ea Ts'ebetso ea Steel Roof Truss

Ntho ea Tlhahlobo	Phoso e lumelletsoeng (mm)	Boleng bo Lekanyelitsoeng (mm)	Sheba Sephetho
Sekhahla sa Truss (L)	±10	—	√ (Pasa)
Truss Height (Boemo)	±5	—	√ (Pasa)
Ho Kobeha ha Truss (Ho kheloha)	L / 750	—	√ (Pasa)
Truss Vertical Alignment	H / 1000	—	√ (Pasa)
Boemo ba Tšehetso	±5	—	√ (Pasa)
Torque ea Bolt e Matla a Phahameng	E finyella litlhoko tsa moralo	—	√ (Pasa)

Lintlha tsa Bohlokoa tsa Taolo:

Lekola likarolo tsohle tsa tšepe tse kenang setšeng ho netefatsa mofuta oa tsona, boholo le boleng ba weld;
Sebelisa moralo o bolokehileng le o sebetsang oa ho phahamisa ho netefatsa polokeho ea ho phahamisa;
Fetola le ho lokisa truss hang ka mor'a hore e behoe sebakeng;
Tiisa liboutu tsohle tse matla a phahameng hantle 'me u leke torque ea tsona ho latela khoutu;
Etsa tlhahlobo e felletseng ho netefatsa hore sebopeho se kentsoeng se kopana le litlhoko tsohle tsa moralo le khoutu.

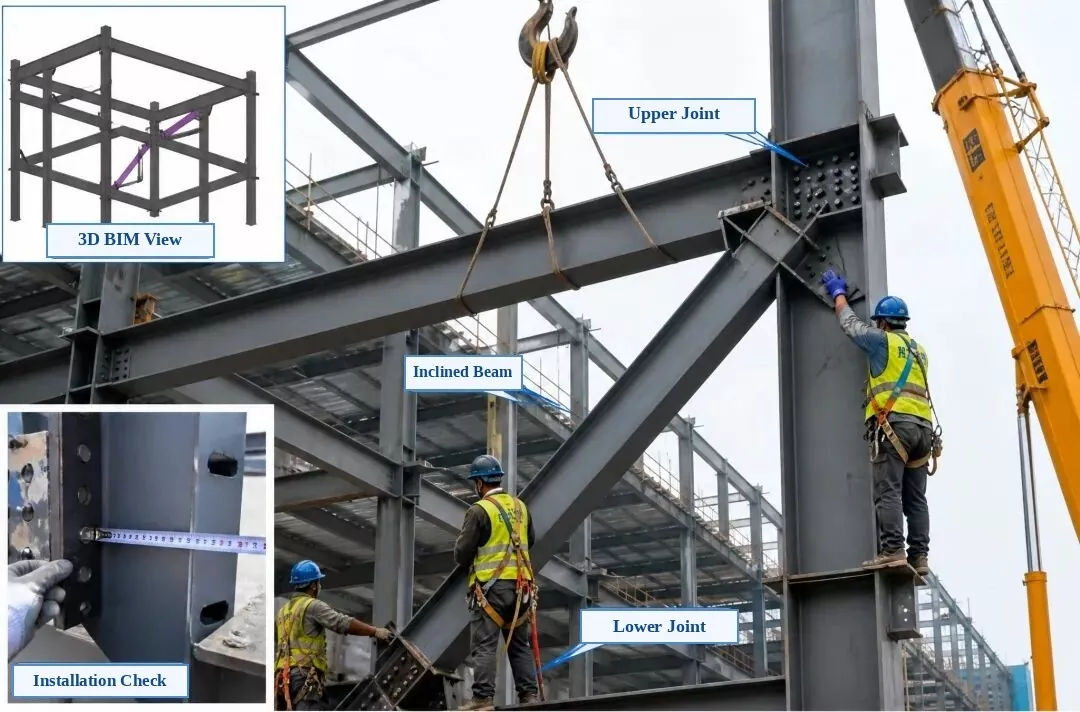

4. Ho kenngoa le ho Hlahlobisisa Frame ea tšepe - Kenyelletso ea Beam e Kenyelitsoeng

Li-Labels tsa Linepe tse Nkiloeng:Inset e ka Holimo-Le letšehali: Pono ea 3D BIM | Inset e ka Tlase-Le letšehali: Hlahloba ho Kena | Senepe se ka Sehloohong: Kopanelo e ka Holimo, Beam ea Tšepe e Kentsoeng (Diagonal Brace), Kopanyo e Tlaase

Ho kengoa le ho Hlahlobisisa Frame ea tšepe - Kenyelletso ea Beam e Kenyellelitsoeng

1. Hlahloba esale Pele:Sheba nomoro ea karolo, boholo, maemo a lesoba la bolt, le tataiso ea poleiti ea khokahano. Etsa bonnete ba hore libaka tsa ho kopana li bataletse, li hloekile, 'me ha li na li-burrs kapa oli.

2. Phahamiso le Maemo:Sebelisa lintlha tse peli tsa ho phahamisa ho phahamisa leballo le sekametseng butle-butle sebakeng sa lona. E lokise ka nakoana 'me u netefatse hore lihlopha tse ka holimo le tse ka tlaase li tsamaisana hantle le kholomo ea tšepe le sefate.

3. Tokiso le Tokiso:Fetola boemo ba bohareng, bophahamo, le tepo e otlolohileng ea leballo le sekametseng ho fihlela litlhoko tsa moralo. Tlatsa khokahanyo e sa feleng ka mor'a ho lumellana.

4. Mokhoa oa Khokahano:Hokela ka liboutu tse matla haholo. Li tiise ka ho lekana ho tloha bohareng ho ea ka ntle ho ea mahlakoreng ka bobeli joalo ka ha moralo o hlokoa, 'me u tšoaee boutu e' ngoe le e 'ngoe ka mor'a tlhahlobo ea ho qetela ea ho tiisa.

5. Tlhahlobo ea Kemiso:Lekola boemo ba bohareng, bophahamo, tepo e otlolohileng, ho tiea ha poleiti, le boleng ba ho tiisa bolt. Ntho e 'ngoe le e' ngoe e tlameha ho kopana le Khoutu ea Kamohelo ea Boleng ba Kaho ea Mehaho ea Litšepe (GB 50205).

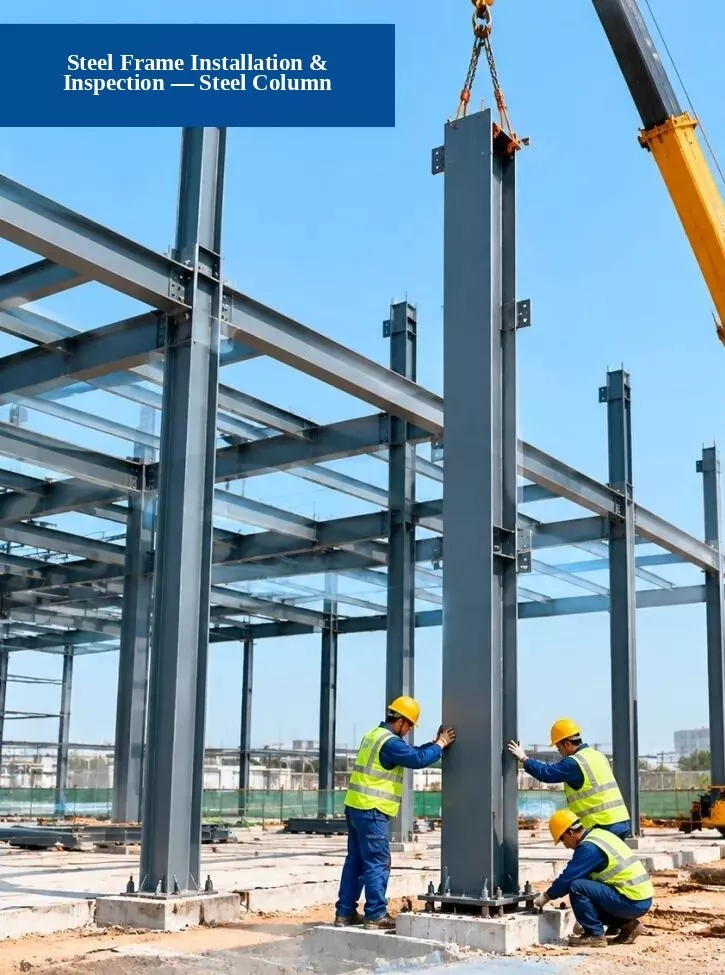

5. Ho kengoa le ho Hlahlobisisa Frame ea tšepe - Ho kenngoa ha Column ea tšepe

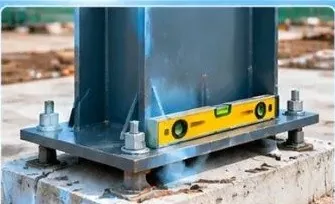

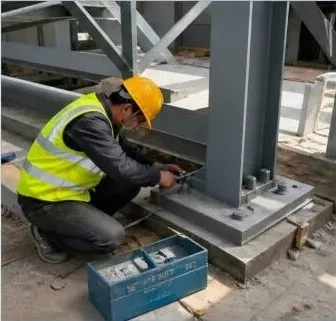

1. Tlhahlobo ea Motheo:Lekola hore na maemo a liboutu tsa ankora, bophahamo ba motheo, le boholo ba motheo li fihlella litlhoko tsa moralo.

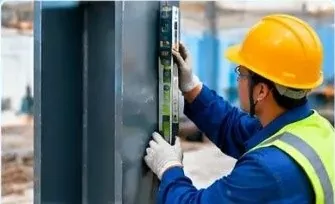

2. Teko ea Tolamiso e Otlolohileng:Sebelisa seteishene kaofela, laser plumb, kapa straightedge level ho lekola hore na kholomo ea tšepe e otlolohile hakae (e otlolohile).

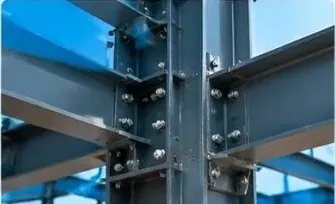

3. Tlhahlobo ea Boleng ba Khokahano:Lekola hore na liboutu tse matla haholo, li-welld le lipoleiti tsa khokahano li fihlella litlhoko tse tloaelehileng.

Mokhoa oa kaho:1. Mosebetsi oa Boitokisetso → 2. Phahamisa & Beha Kholomo ea Tšepe → 3. Kenya & Sireletsa → 4. Tlhahlobo & Kamohelo

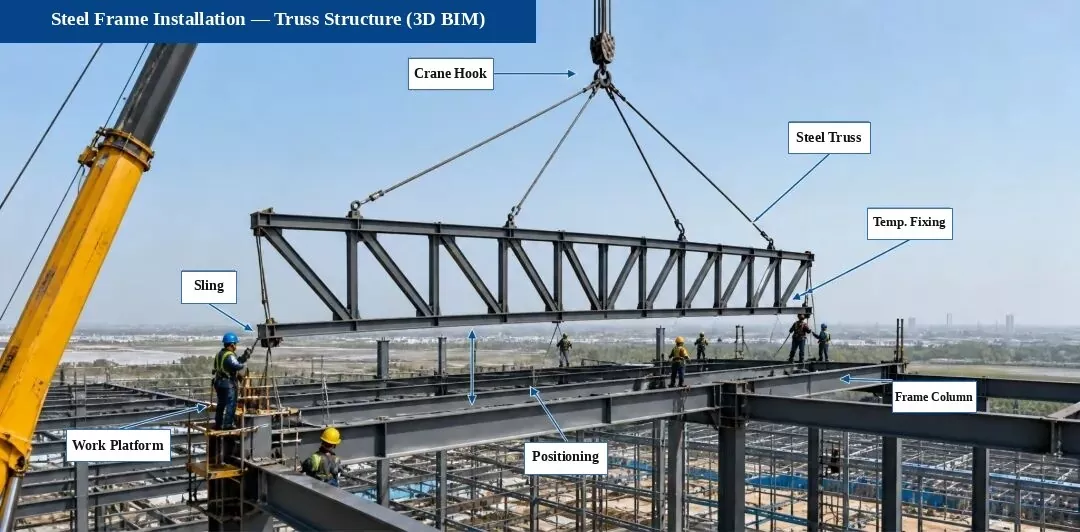

6. Ho Kenya Frame ea Tšepe - Ho Kenyetsoa Sebopeho sa Truss (Setšoantšo sa 3D BIM)

Phallo ea Ts'ebetso ea ho Kenya:Patlisiso le ho Tšoaea → Sheba Ts'ehetso → Phahamisa le Sebaka → Tokiso ea Nakoana → Tokiso & Tokiso → Khokahano ea Bolt e Matla a Phahameng → Welding (haeba ho hlokahala)

Lintlha tsa Bohlokoa tsa ho Kenya:

Pele o phahamisa, hlahloba habeli setsi sa ts'ehetso, bophahamo, le maemo a likarolo tse kentsoeng;
Hokela liropo tsa tataiso ea moea (li-taglines) nakong ea ho phahamisa ho boloka truss e tsitsitse;
Fetola le ho boloka terata ka nakoana hang ka mor'a ho behoa ho thibela ho kobeha kapa ho sotha;
Maqhama a matla a phahameng a bolt a tlameha ho latela melao ea moralo le khoutu mme a tiisetsoe ho torque e hlokahalang;
Boleng ba weld bo tlameha ho kopana le melao ea Khoutu ea Kamohelo ea Boleng ba Kaho ea Mehaho ea Litšepe (GB 50205).

Lintlha tsa Bohlokoa tsa Tlhahlobo (Lifoto tsa Sebaka):

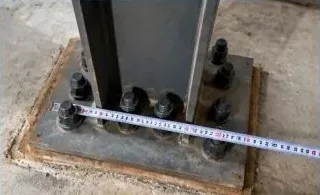

1. Support & Joint Check

Lekola maemo le bophahamo ba liboutu tsa tšehetso, lipoleiti tsa shim, le likarolo tse kentsoeng ho etsa bonnete ba hore li fihlela litlhoko tsa moralo.

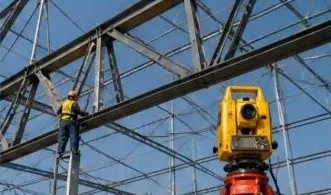

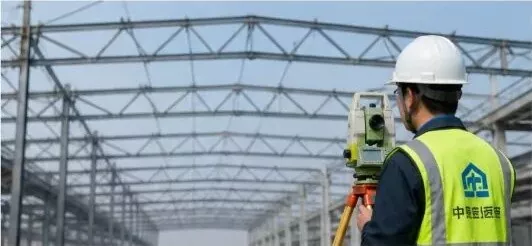

2. Truss Alignment Check

Sebelisa seteishene se felletseng ho lekanya moeli o bohareng, bophahamo, le ho kobeha ha truss, le ho etsa liphetoho tsa ho tsamaisana.

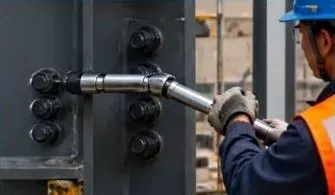

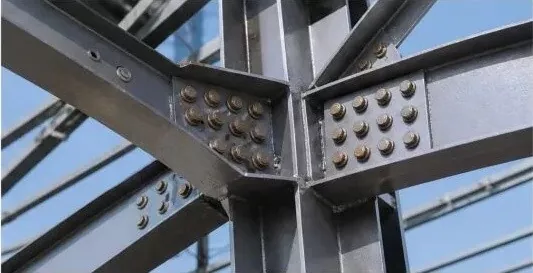

3. Tlhahlobo ea Bolt ea Matla a Phahameng

Sheba palo, boholo, le torque ea liboutu tse matla haholo, 'me u li hlahlobe hape kamoo ho hlokahalang ka khoutu.

Hlokomela:Sebopeho sa truss morerong ona se bokelloa pele fekthering 'me se phahamisoe ka likarolo setšeng ho netefatsa ho kenngoa ka nepo, boleng le polokeho.

7. Steel Frame & Profiled Metal Roof Sheet Ho kenya le ho hlahloba

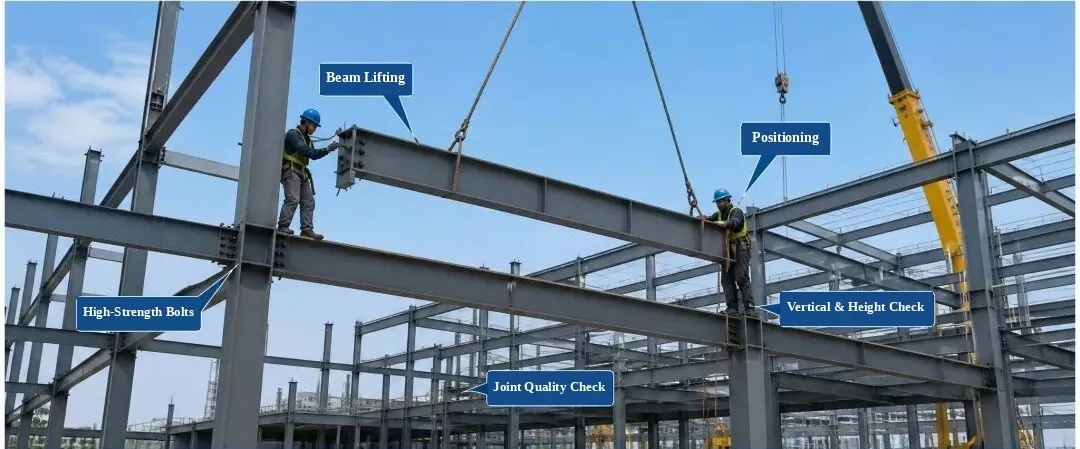

Ho kengoa le Tlhahlobo ea Frame ea tšepe

(Li-Labels: Ho Phahamisa Beam, Positioning, High-Strong Bolts, Vertical & Height Check, Teko ea Boleng bo Kopanetsoeng)

1. Tlhahlobo ea Karolo e Kenang:Sheba boleng ba thepa, boholo, boemo ba bokaholimo, le ho otloloha. Kenya feela ka mor'a ho feta tlhahlobo.

2. Taolo ea Ts'ebetso:Laola boemo ba karolo, bophahamo, tekano e otlolohileng, le ho tiisa bolt nakong ea ho kenya.

3. Lintho tsa Tlhahlobo:Boemo ba Centerline, bophahamo, tekano e otlolohileng, ho bata ha bokaholimo, le boleng ba khokahano ea bolt.

4. Maemo a Boleng:E tlameha ho kopana le Khoutu ea Kamohelo ea Boleng ba Kaho ea Mehaho ea Litšepe (GB 50205-2020).

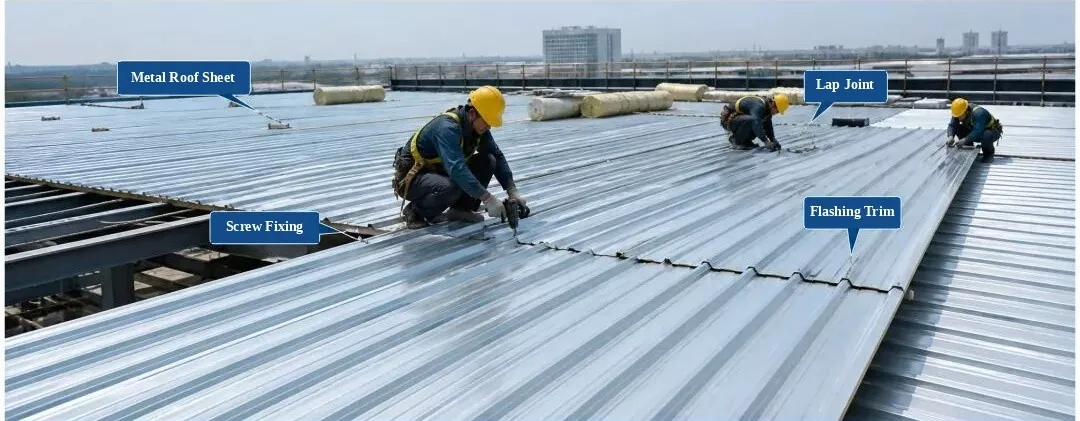

Ho kengoa le ho Hlahlobisisa ha Metal Roof Sheet

(Labels: Metal Roof Sheet, Lap Joint, Self-Tapping Screw Fixing, Flashing Trim)

1. Tlhahlobo ea Boitsebiso:Lekola profaele ea phanele, botenya, ho roala le 'mala. Sebelisa feela ka mor'a ho feta tlhahlobo.

2. Melao ea ho Kenya:Koahela liphanele ka nepo 'me u li lokise ka thata. Boloka sekheo sa screw ka har'a meeli e tloaelehileng, ho se na likurufu tse sieo kapa tse sa behoang hantle.

3. Lintho tsa Tlhahlobo:Marulelo a bataletseng, bophara ba ho fetana, sebaka sa ho fastening, le lintlha tse thibelang metsi.

4. Maemo a Boleng:E tlameha ho kopana le Code Technical for Metal Roof Engineering (GB 50345-2012).

8. Ho kenya le ho hlahloba Frame ea tšepe - Litepisi tsa tšepe le ho kenya letsoho

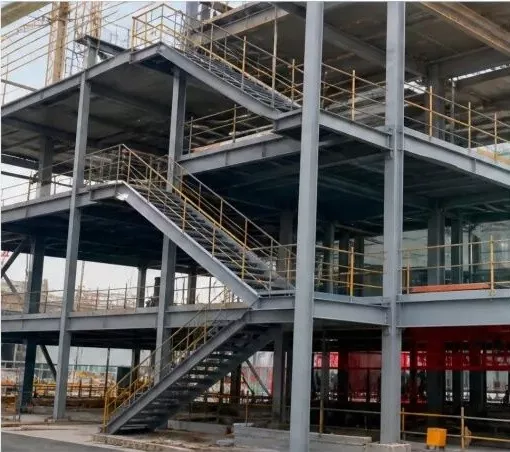

1. Litepisi tse Phethiloeng Tsa Tšepe le Matsoho (Senepe sa Sebaka)

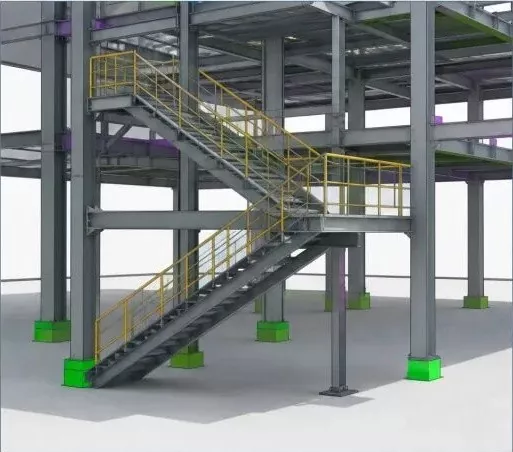

2. 3D BIM Model (Litepisi tsa Tšepe le Li-Handrails)

3. Ho kenya litepisi tsa tšepe (Mosebetsi oa Sebaka)

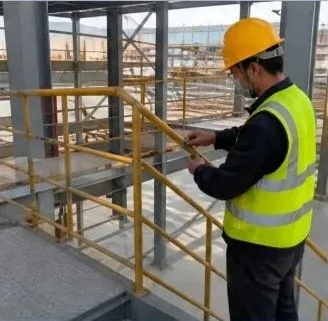

4. Ho kenya Handrail (Mosebetsi oa Sebaka)

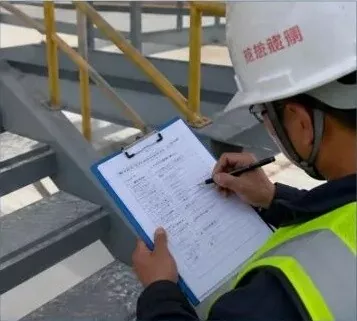

5. Tlhahlobo ea Boleng ba Tlhophiso (Tlhahlobo ea Sebaka)

Litaelo:

Pele o kenya litepisi tsa tšepe le li-handrails, hlahloba habeli likarolo tsa likarolo, bophahamo, le li-centrelines tsa mohaho;
Ha u sebelisa likhokahano tse nang le liboutu, hlahloba boholo ba bolt, bongata, le torque ho netefatsa khokahano e tiileng;
Li-handrails tse kentsoeng li tlameha ho ba tse tiileng le tse otlolohileng, tse nang le li-welds tse feletseng le tse boreleli tse finyellang litlhoko tsa moralo le khoutu;
Etsa tlhahlobo ea boleng ka mor'a ho kenya le ho tlatsa tlaleho ea tlhahlobo ho netefatsa boleng ba morero.

Maemo a Kaho ea Mehaho ea Litšepe (Liforeimi tsa Tšepe)

Sebopeho sa tšepeesli sebelisoa haholo 'marakeng oa kajeno oa kaho ho aha liforeimi tsa meaho, 'me e tla ba khetho ea mantlha bakeng sa meaho ea mantlha nakong e tlang. Mehaho ea tšepe e na le likaroloana tse ngata, mefuta ea sebopeho le mefuta ea likarolo. Ho ipapisitsoe le sistimi ea meralo, li arotsoe ka mefuta e mene e meholo: liforeimi tsa li-portal, li-grid tsa sebaka, li-trusses le libopeho tsa foreimi.
